How to Connect Wi-Fi on TM-981

How to Connect Wi-Fi on TM-981

First. Store Wi-Fi SSID and password

There are two methods for storing Wi-Fi SSID and password to the radio: one is via the RealPTT dispatcher, and the other is via the programming software.

l  Via REAL-PTT Dispatcher

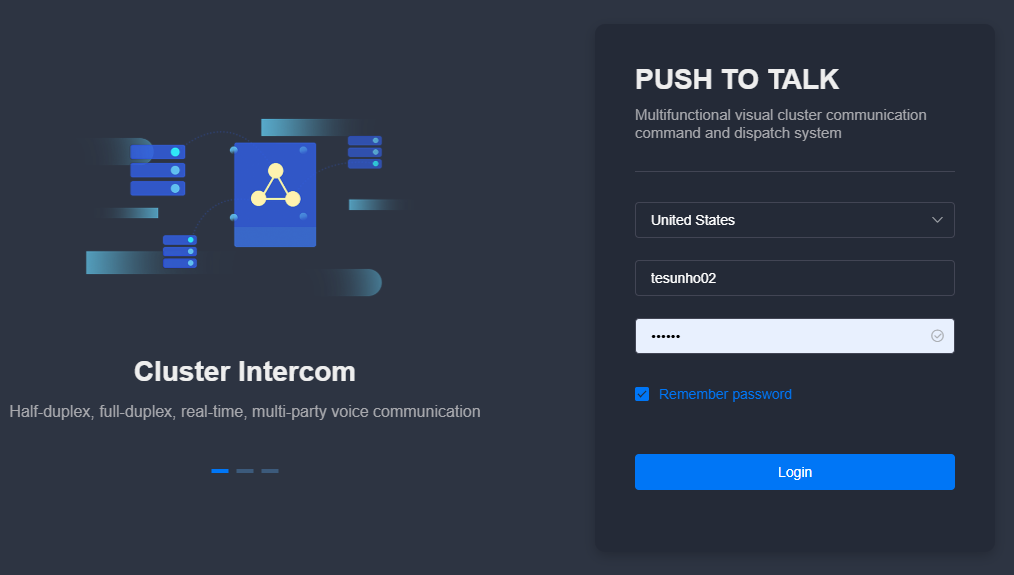

Log in to REAL-PTT Dispatcher

screenshot_2025-03-27_10-41-55

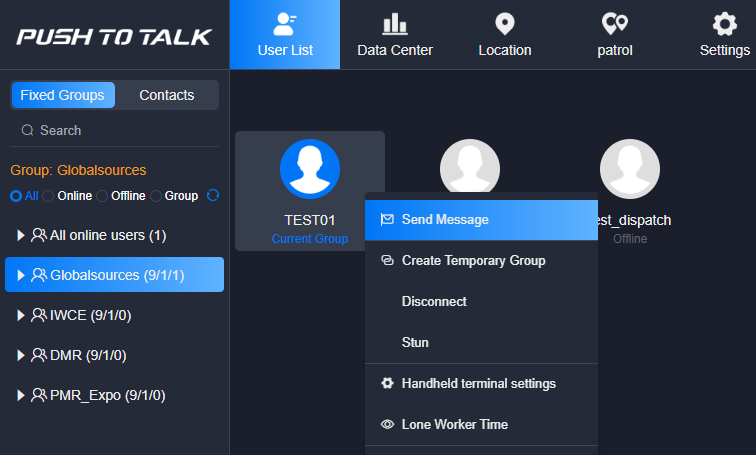

Choose the user to send message

screenshot_2025-03-27_10-52-21

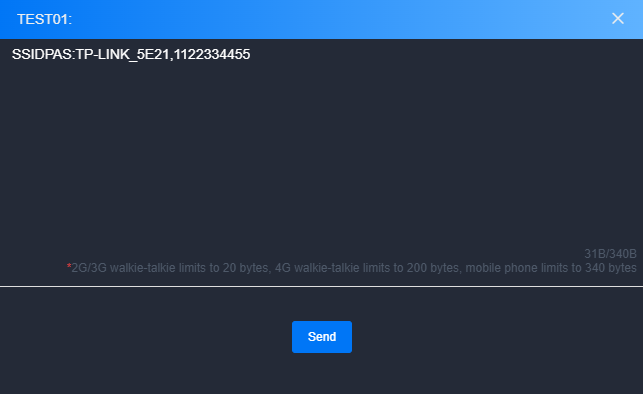

Fill in the SSID and password, then click Send

screenshot_2025-03-27_10-53-01


l  Via Programming Software

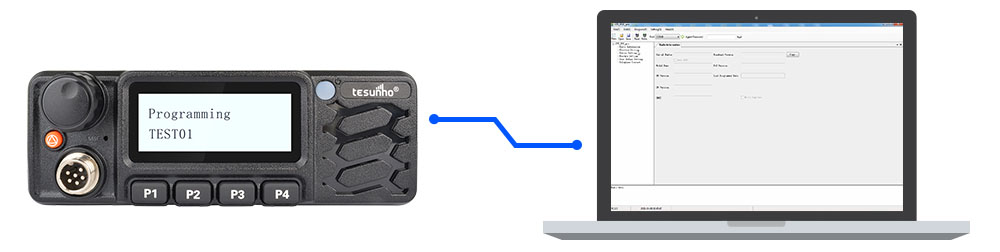

Connect the radio to the computer

Put the radio into programming mode

Open the programming software

新闻内配图-1000X500-981写频

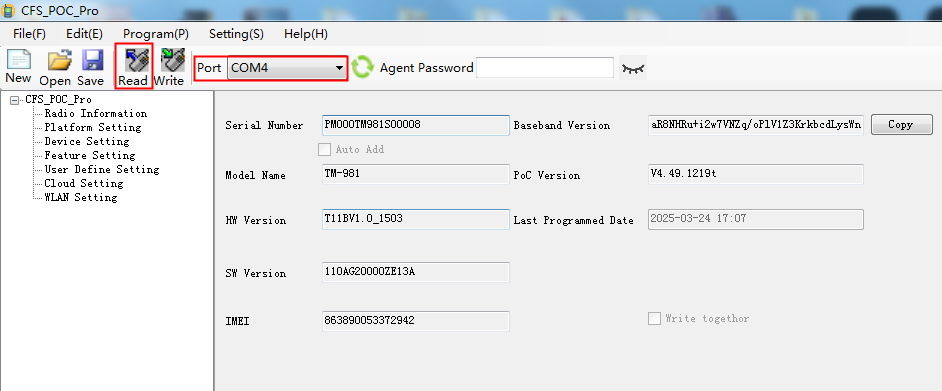

Select corresponding port and read your radio

1

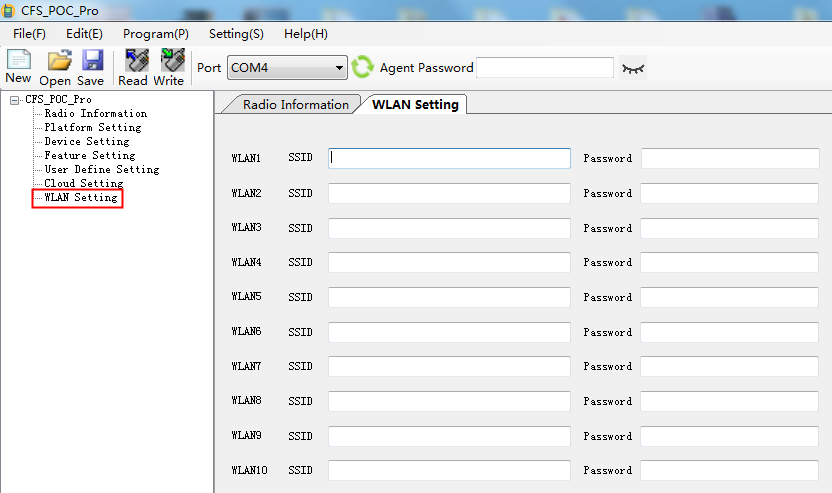

Click WLAN Setting

2

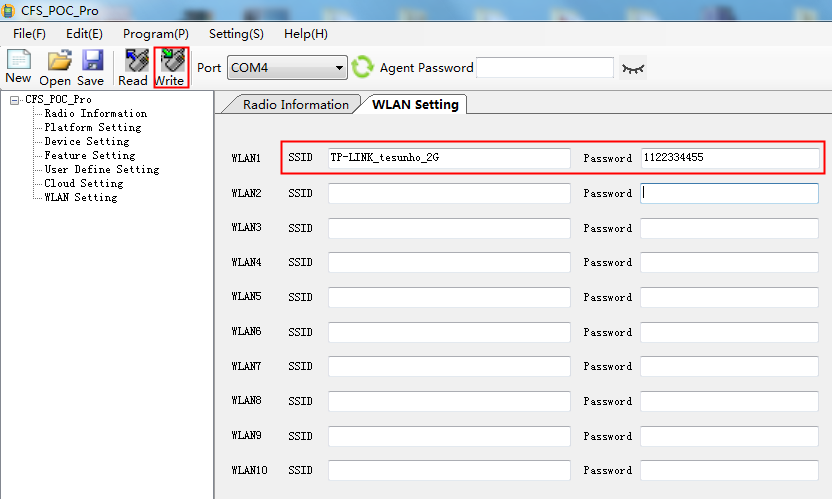

Fill in the SSID and password, then click Write

3


Second. Connect to Wi-Fi

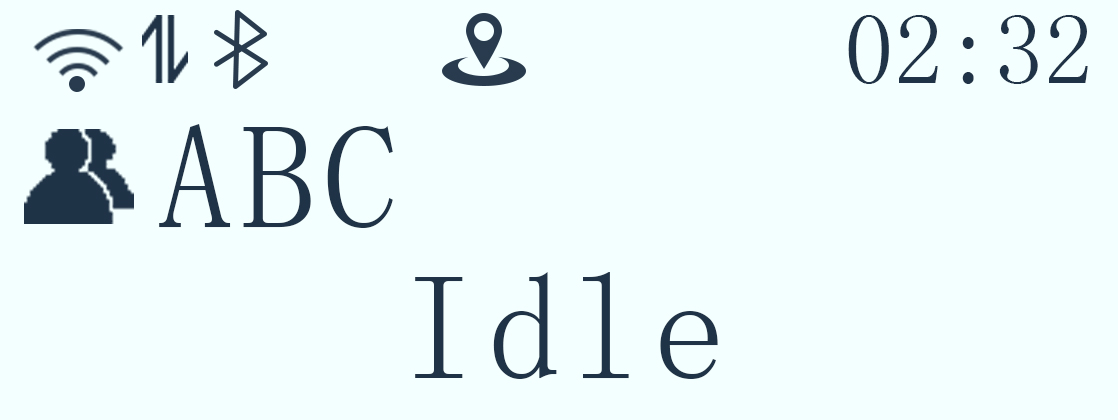

Press Encoder knob to enter Menu

4-(1)

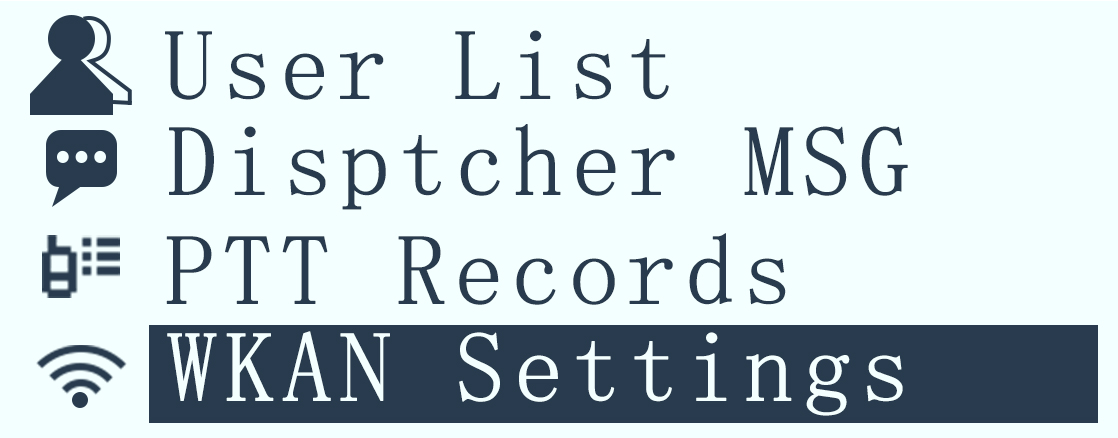

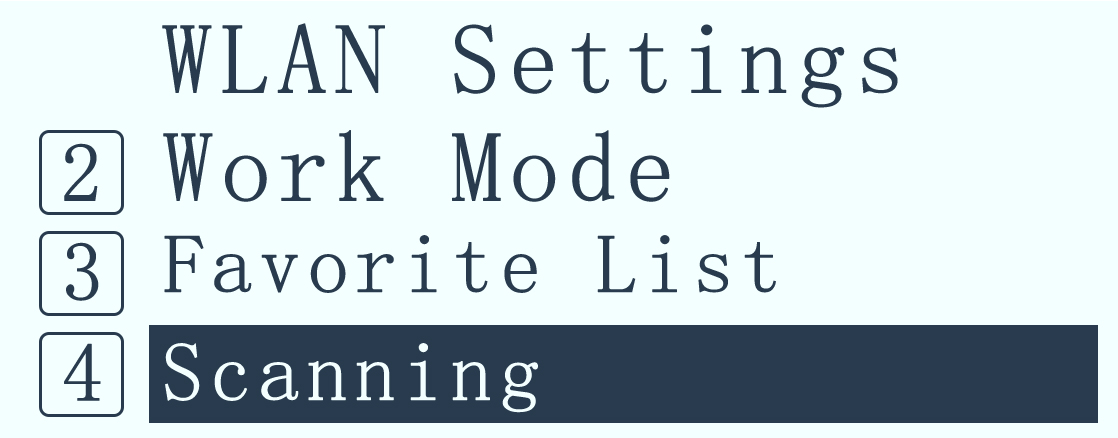

Rotate the Encoder knob to select WLAN Settings, then press Encoder knob to enter

User-List

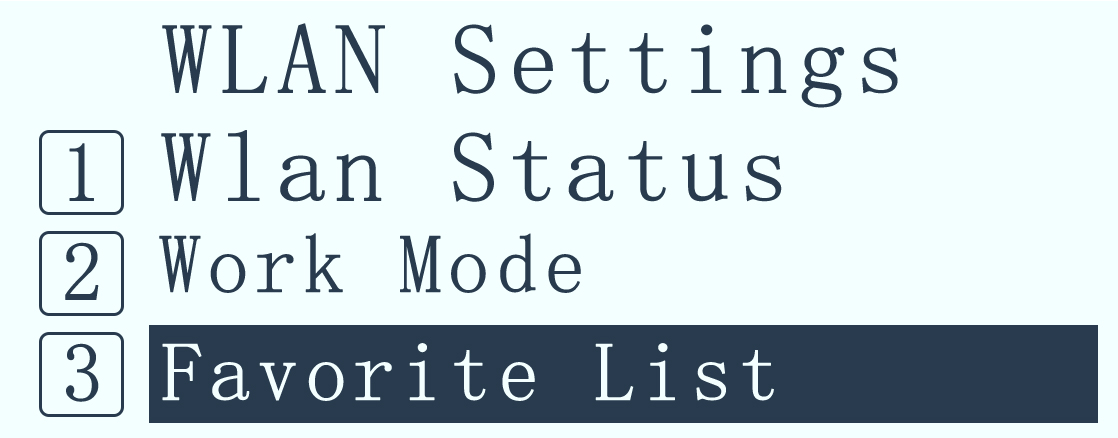

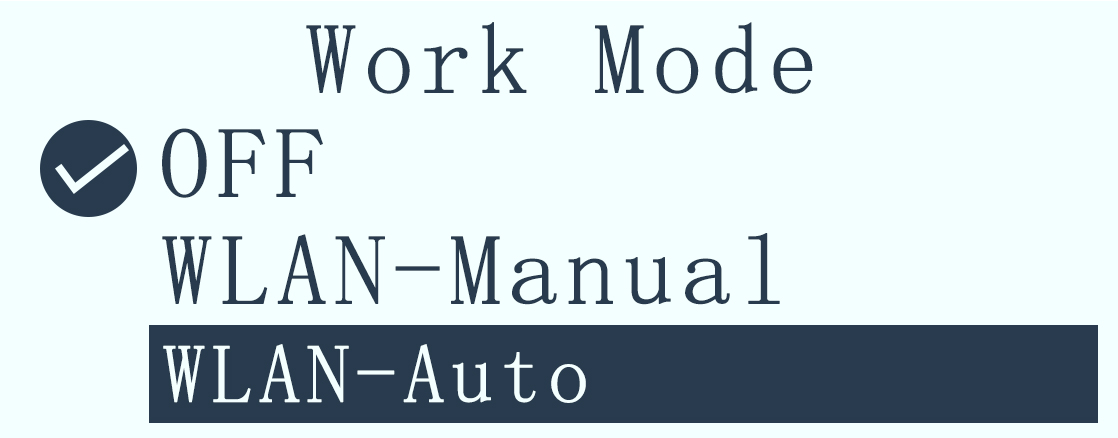

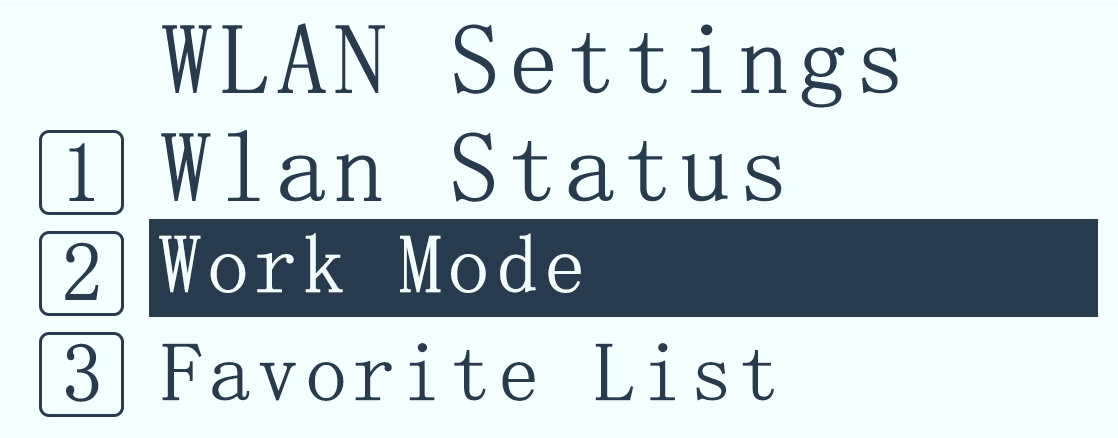

Enter into Work Mode, choose WLAN-Manual or WLAN-Auto, press Encoder knob to save

WLAN-Settings02              Work-Mode

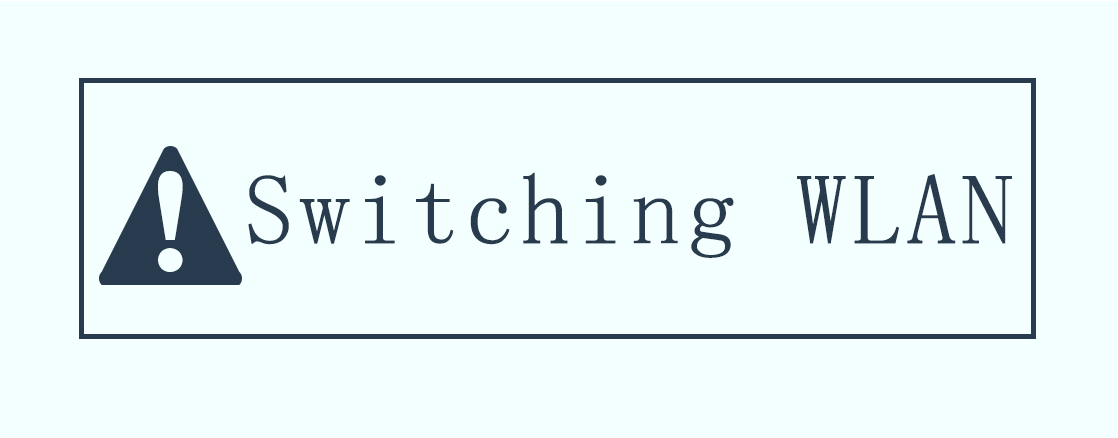

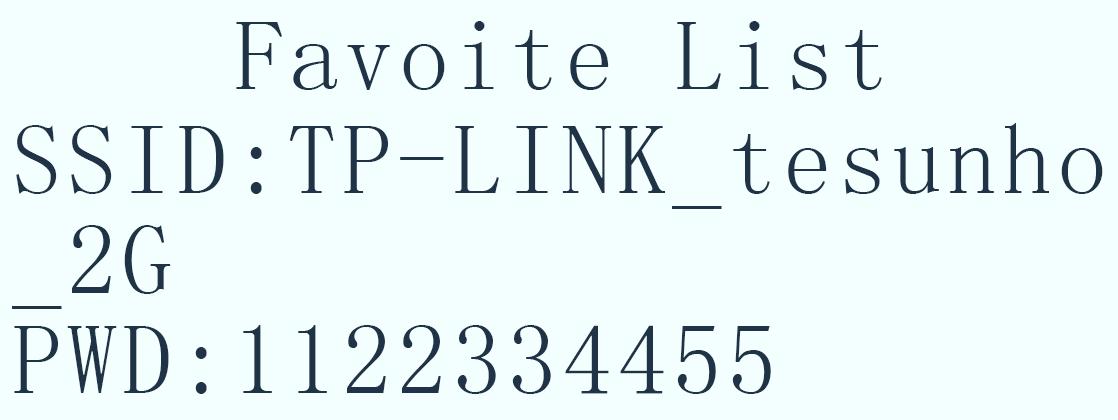

Enter into Favorite List, rotate the Encoder knob to choose the WLAN, press Encoder knob to switch WLAN

WLAN-Settings              Favoite-List


Switching-WLAN              123
